MS26482 Connector,MS3122E14-4SW,MIL-C-26482Ⅰ，MS26482 seriesⅠ

Brand Name : HIGH WOOD

Model Number : MS3122E14-4SW

Certification : AS9001

Place of Origin : CHINA

MOQ : 100PCS

Price : 10＄-150＄

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100，000pcs per month

Delivery Time : 2-9weeks

Packaging Details : standard expect package

Operating temperature range : -55 ℃ ~ +125 ℃

Corrosion resistance : Class L withstand 48 hours salt spray and others withstand 500 hours salt spray

Durability : ≥ 500 mating cycles

Shock : Max acceleration 490 m/s2

Material : Aluminium-alloy, copper-alloy or stainless steel

Random vibration : Frequency 10Hz ~ 2000Hz at 147 m/s2

Contact Now

MS3122E18-11P,MIL-C-26482Ⅰ,MS26482 seriesⅠ
MIL-C-26482 series I circular connector is designed for quick bayonet coupling, solder contact, small size and medium contact density.

This family of circular connectors is offered 3 kinds of shell of different material, 9 kinds of size Shell, 4 kinds of finishes, 6 plug styles, 18 receptacle-mounting styles, 3 kinds of contact and more than 30 kinds of contact layout.

Widely used on commercial, military and aerospace systems, etc.

How to order.
MS 3110 E 18 -32 P N L
Basic series
Type of shell
3110 = Wall mounting square receptacle
3111 = Cable connecting receptacle
3112 = Box mounting square receptacle
3114 = Jam nut receptacle
3116 = Straight plug
3117 = Thru bulkhead receptacle
Type
B = PCB
E = Grommet seal, conductive shell
F = Grommet seal, conductive shell with cable clamp
J = Hermetic cable, conductive shell
M = Waterproof
P = Hermetic encapsulation, conductive shell
R = Without back shell
Shell size
08, 10, 12, 14, 16, 18, 20, 22, 24
Contact layout (see below)
Contact
P = Pin
S = Socket
Orientation
N, W, X, Y, Z
Finish
Omit = Olive drab cadmium plating
A = Black anodized
B = Olive green cadmium plating
S = Stainless steel passivated
L = Electroless nickel plating


Product showing.

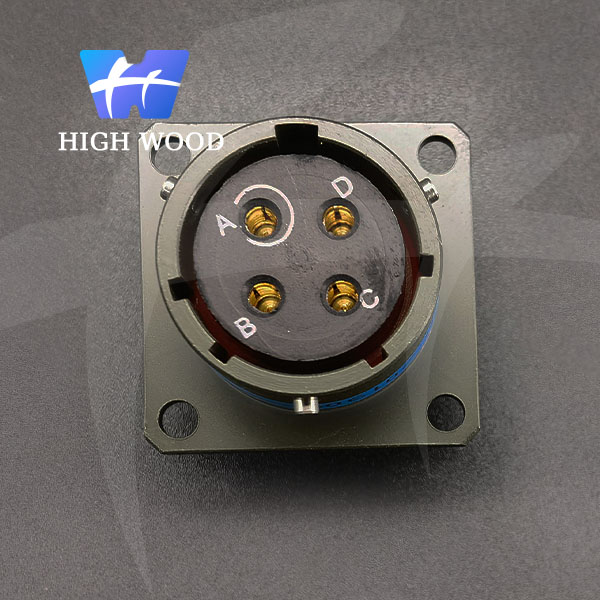

MS26482 Connector,MS3122E14-4SW,MIL-C-26482Ⅰ，MS26482 seriesⅠ
MS26482 Connector,MS3122E14-4SW,MIL-C-26482Ⅰ，MS26482 seriesⅠ
MS26482 Connector,MS3122E14-4SW,MIL-C-26482Ⅰ，MS26482 seriesⅠ
MS26482 Connector,MS3122E14-4SW,MIL-C-26482Ⅰ，MS26482 seriesⅠ
MS26482 Connector,MS3122E14-4SW,MIL-C-26482Ⅰ，MS26482 seriesⅠ

Voltage rating (V)

Service rating

 Suggested operating voltage Test voltage
I II I II
Sea level 600 1000 1500 2300
22000 m 300 450 375 500

Contact.

Contact No. Diameter (mm) Resistance (mΩ) Current (A)
20 # Φ 1.00 ≤ 5 7.5
16 # Φ 1.59 ≤ 3 13.0
12 # Φ 2.39 ≤ 2 23.0
