Name: MICROD Rectangular Connectors CRM2320101118401
Brand: HIGH WOOD
Price: 10 USD

Brand Name : HIGH WOOD

Model Number : CRM-232-010-111-8401

Certification : AS9001

Place of Origin : China

MOQ : 100PCS

Price : 10＄--150＄

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs per month

Delivery Time : 2--9 weeks

Packaging Details : standard export package

Operating temperature : -55℃~+125℃

Rated current : 3A

Mating times : 1000 cycle

Contact resistance : ≤25mΩ

Impact : Acceleration 980m/s 2

Locking attachment : Stainless steel

Insulator : PPS

Inner conductor : The copper alloy is plated with gold

Contact Now

THE CRM SERIES CONNECTOR FEATURES:

Technical characteristics
Ambient temperature	-55℃~+125℃
Vibration	10Hz~2000Hz 147m/s 2
Impact	Acceleration 980m/s 2
Electrical performance index
Dielectric withstand voltage	750V(Standard atmosphere) 250V(Low atmospheric pressure)
Insulation resistance	≥5000MΩ(Normal temperature) ≥20MΩ (Damp and hot)
Contact resistance	≤25mΩ
Rated current	3A
Mechanical performance index
Mechanical life	1000 times
Material and coating
Locking attachment	Stainless steel
Insulator	PPS
Inner conductor	The copper alloy is plated with gold

Product show:

MICRO-D Rectangular Connectors , CRM-232-010-111-8401

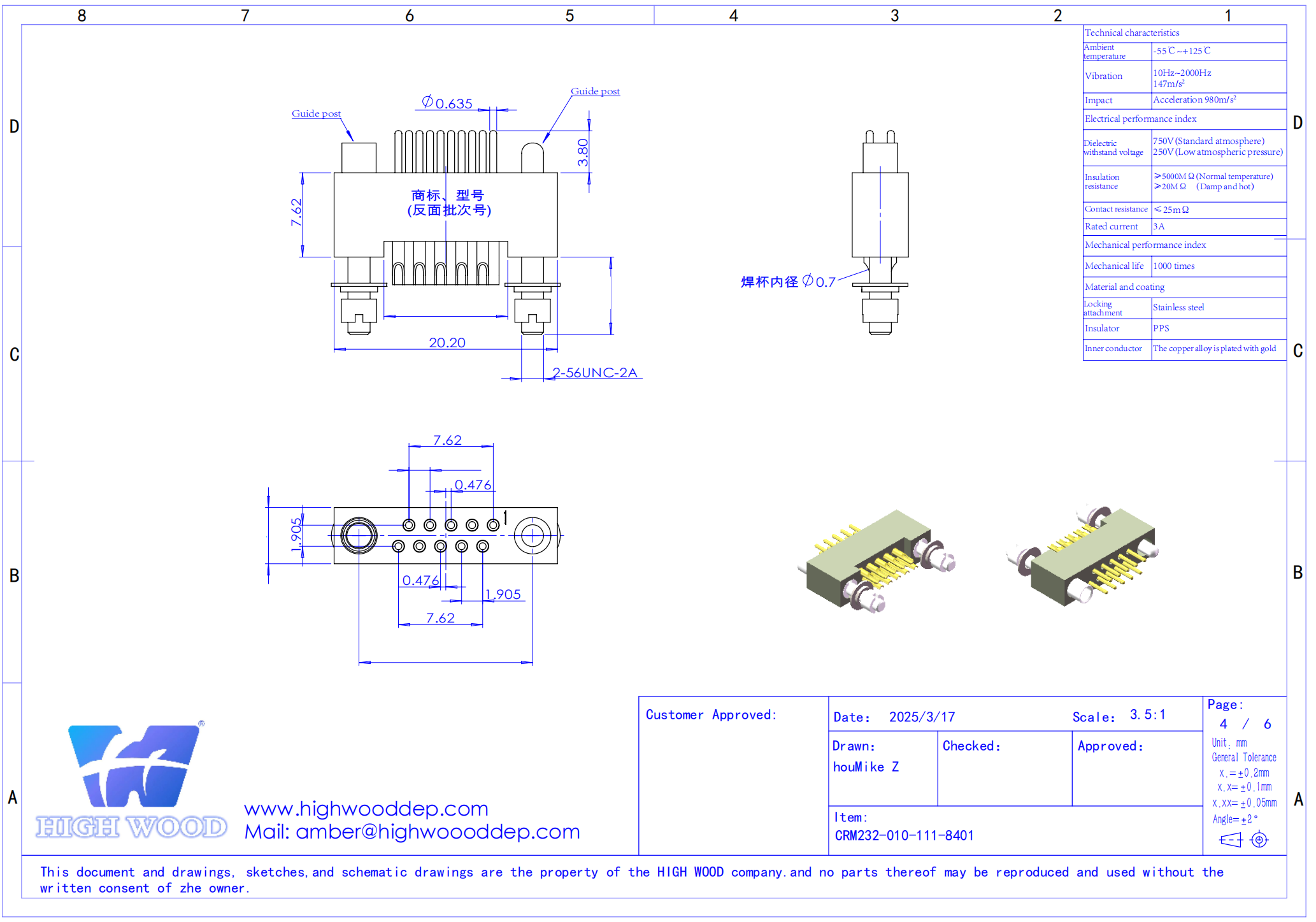

Drawings show:

MICRO-D Rectangular Connectors , CRM-232-010-111-8401
